    SW horizontal airtight conical sand mill series

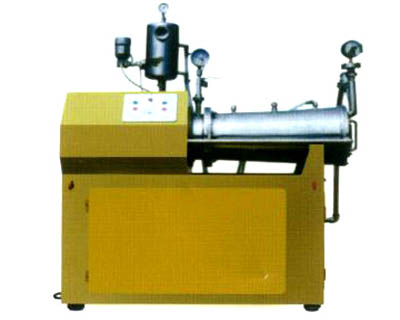

    Product name: SW horizontal airtight conical sand mill series

    Main technical parameters:

    Parameter　　Type SW15－1 SW20－1 SW30－1 SW45－1
    Size



    		 A 1530 1690 1690 2050
    B 880 1000 1000 1000
    C 1350 1550 1550 1650
    Power of main motor 　KW 15 18.5 22 30
    Motor power of pump 　KW 1.1
    Volume of cylinder 　　L 15 20 30 45
    Rotation speed of dispersion tray r/min 1055 875 860 740
    Number of dispersion tray 　 (p) 5 6 7 7
    Consumption of Cooling water (m3/h) 1.5 2
    Viscosity 　　　　 (pa.s) ≤10
    Loading quantity of Grinding media ≤ 85% of Volume of cylinder
    Feed capacity 　　 (l/min) 2－16 3－24
    Weight (kg) 720 800 1000 1200
