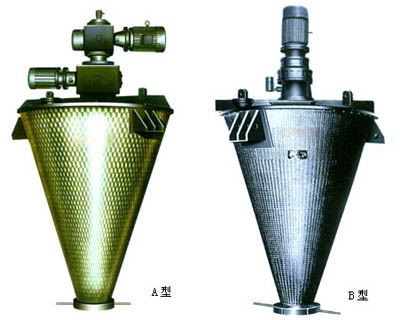

    H Cantilever double spiral cone mixer

    Product name: H Cantilever double spiral cone mixer

    Technical parameters:

    Item 　　Model

    DSH-0.3c DSH-0.3p

    		 DSH-0.5c DSH-0.5p DSH-1c DSH-1p DSH-1.5c DSH-1.5p DSH-2c DSH-2p DSH-3c DSH-3p DSH-4c DSH-4p DSH-6c DSH-6p DSH-8c DSH-8p DSH-10c DSH-10p DSH-12c
    DSH-12p
    Full volume (m3) 0.3 0.5 1 1.5 2 3 4 6 8 10 12
    Loading coefficient 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
    Output (t/h) 0.3-1 0.5-1.5 2-2.5 2-4 2.5-5 3.5-8 5-10 7.5-15 10-12 12-25 15-30
    Total power (kw) A 3.55 3.55 4.55 4.75 6.05 8.05 12.5 16.5 20 20 23.5
    B 2.2 3 4 5.5 5.5 7.5 11 15 18.5 18.5 22
    Particle size of Material (mesh) 20-450
    Mixing uniformity Relative deviation <1.5％
    Revolution 2
    Rotation A 143 57 70
    B 143 57
    Maximum diameter (mm) 930 1130 1500 1633 1830 2040 2250 2548 2780 3018 3204
    Weight (kg) 550 600 1200 1350 1500 2300 2520 3160 3600 3950 4150
